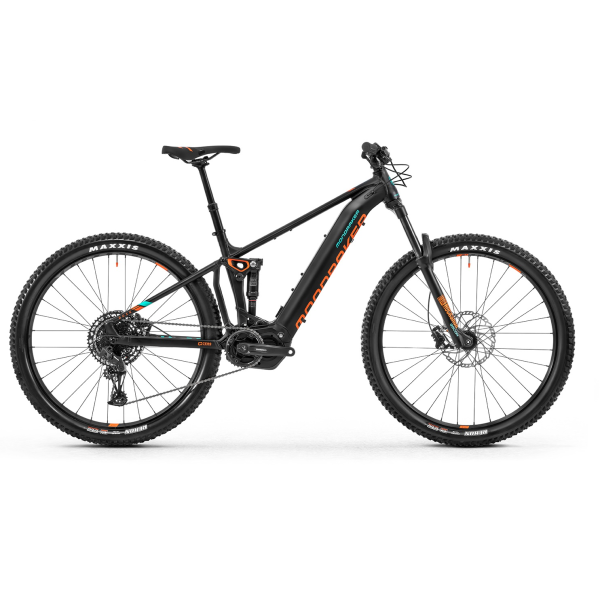

MONDRAKER – DUSK R

-10%

MONDRAKER – DUSK R

0 out of 5

5 199,00 4 679,10

Taille: M
Couleur: NOIR
Année: 2020

Availability: Rupture de stock UGS : 000068 Catégories : , ,

Description

Frame
Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery + external, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor.

Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Rear shock
RockShox Deluxe Select R Debonair, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

Shock setting
Light compression, Light rebound, 1 Token

Fork
RockShox Recon RL Motion control 29, 150mm, DebonAir, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2x7x45°x45°, bottom 51.9x40x8x45°x45°

Stem
Onoff Sulfur FG 30mm, 6061 forged alloy, 31.8mm barbore

Handlebar
OnOff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore

Grips
Onoff Twin, 1lock-on, 135mm

Seatpost
Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L/XL size: 425x150mm

Saddle
Mondraker e-MTB custom design

Front brake
Shimano MT501, RT66 203mm IS 6 bolts rotor, resin pads

Rear brake
Shimano MT501, RT66 203mm IS 6 bolts rotor, resin pads

Brake lever
Shimano MT501, servo wave, alloy lever

Rim
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes

Spokes
CN round stainless steel

Front hub
MDK DC711 15x110mm, cup & cone ball bearings, IS 6 bolts

Rear hub
MDK EHL148 12x148mm, sealed bearings, IS 6 bolts

Front tyre
Maxxis Rekon 29×2.6 tubeless ready, Dual compound, EXO protection, 60TPI, folding bead

Rear tyre
Maxxis Rekon 29×2.6 tubeless ready, Dual compound, EXO protection, 60TPI, folding bead

Crank
Shimano E8000 drive unit, Simplo internal 630Wh integrated battery, Simplo external 360Wh battery, Shimano Steps E7000 display, crankset E8000 hollowtech 165mm

Rings
SRAM X-Sync 2 Eagle 34T, narrow-wide, Shimano 104 BCD steel

Bottom bracket
/

Pedals
/

Chain
Sram SX Eagle, 12s

Front  derailleur

Rear derailleur
Sram SX, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

Lever
Sram Trigger SX, 12s, X-Actuation 1:1, single click

Sprocket
Sram PG-1210 Eagle 11-50, 12s

Hanger
Mondraker M068

Others
/

Weight without pedals

Informations complémentaires

Marque

MONDRAKER

Taille

M

Catégorie

E-VTT FULL SUSPENDU
